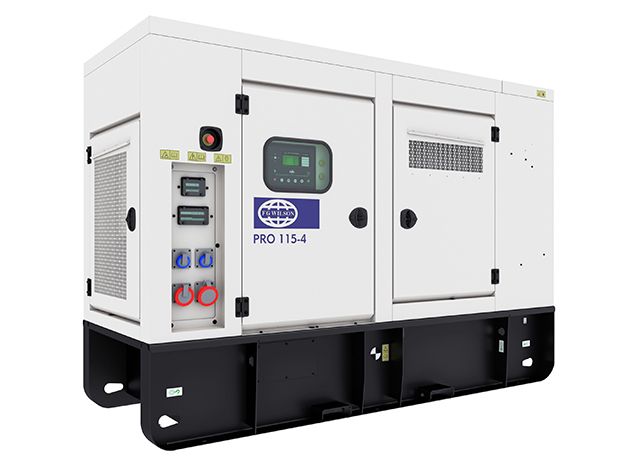

Rental Range PRO115-4

Request A Price Find Dealer

Key Specs

Minimum Rating
115 kVA / 92 kW
115 kVA / 92 kW
Maximum Rating
120 kVA / 96 kW
120 kVA / 96 kW
Emissions/Fuel Strategy
EUV Emissions Compliant
EUV Emissions Compliant

Overview

PRO Rental

The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Extremely robust, the galvanised sound attenuated enclosures provide excellent sound attenuation whilst being able to withstand the harshest on-site conditions.

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has the ability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Testing we can Stand by Peace of mind

All noise and ambient testing completed in our state of the art testing facilities with test reports which we stand by to prove it

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Product Specifications for PRO115-4

Minimum Rating 115 kVA / 92 kW 115 kVA / 92 kW
Maximum Rating 120 kVA / 96 kW 120 kVA / 96 kW
Emissions/Fuel Strategy EUV Emissions Compliant EUV Emissions Compliant
50 Hz Prime 115 kVA / 92 kW 115 kVA / 92 kW
60 Hz Prime 120 kVA / 96 kW 120 kVA / 96 kW
Frequency 50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed 1500 / 1800 RPM 1500 / 1800 RPM
Voltage 127-480 Volts 127-480 Volts
Engine Model 1204J-E44TTAG2 1204J-E44TTAG2
Bore 105 mm (4.1 in) 105 mm (4.1 in)
Stroke 127 mm (5 in) 127 mm (5 in)
Governor Type Electronic ECM Controlled Electronic ECM Controlled
Displacement 4.4 L 4.4 L
Compression Ratio 18.23:1 18.23:1

PRO115-4 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with high ambient capability
  • Pusher fan with guards
  • Coolant drain line with internal brass ball control valve piped to base-frame
  • Low coolant level shutdown.
  • 50% coolant antifreeze with corrosion inhibitor

Exhaust

  • Integrated spark arresting silencer with flexible connectors

Fuel

  • 518 L double wall fuel tank, 25.4 hr runtime @ 75% prime rating

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • DeepSea 7320

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral double wall fuel tank
  • Provides 110% spill containment of all engine fluids
  • Forklift pockets

PRO115-4 Optional Equipment

Alternator

  • Permanent Magnet Generator (PMG)
  • Anti-condensation heater 110 or 230 VAC

Starting/Charging

  • 12V battery charger
  • UL/CSA listed 120 V, 20 Amp battery charger, shock mounted and enclosed in dust proof housing

General

  • CE socket box with integrated MCB and RCBO protection
  • Clipsal socket box with integrated MCB and RCBO protection
  • Coolant heater 110 or 230 VAC
  • CE labelling (also available for BSFC)
  • Lube oil sump pump

See how PRO115-4 compares against frequently compared products.
