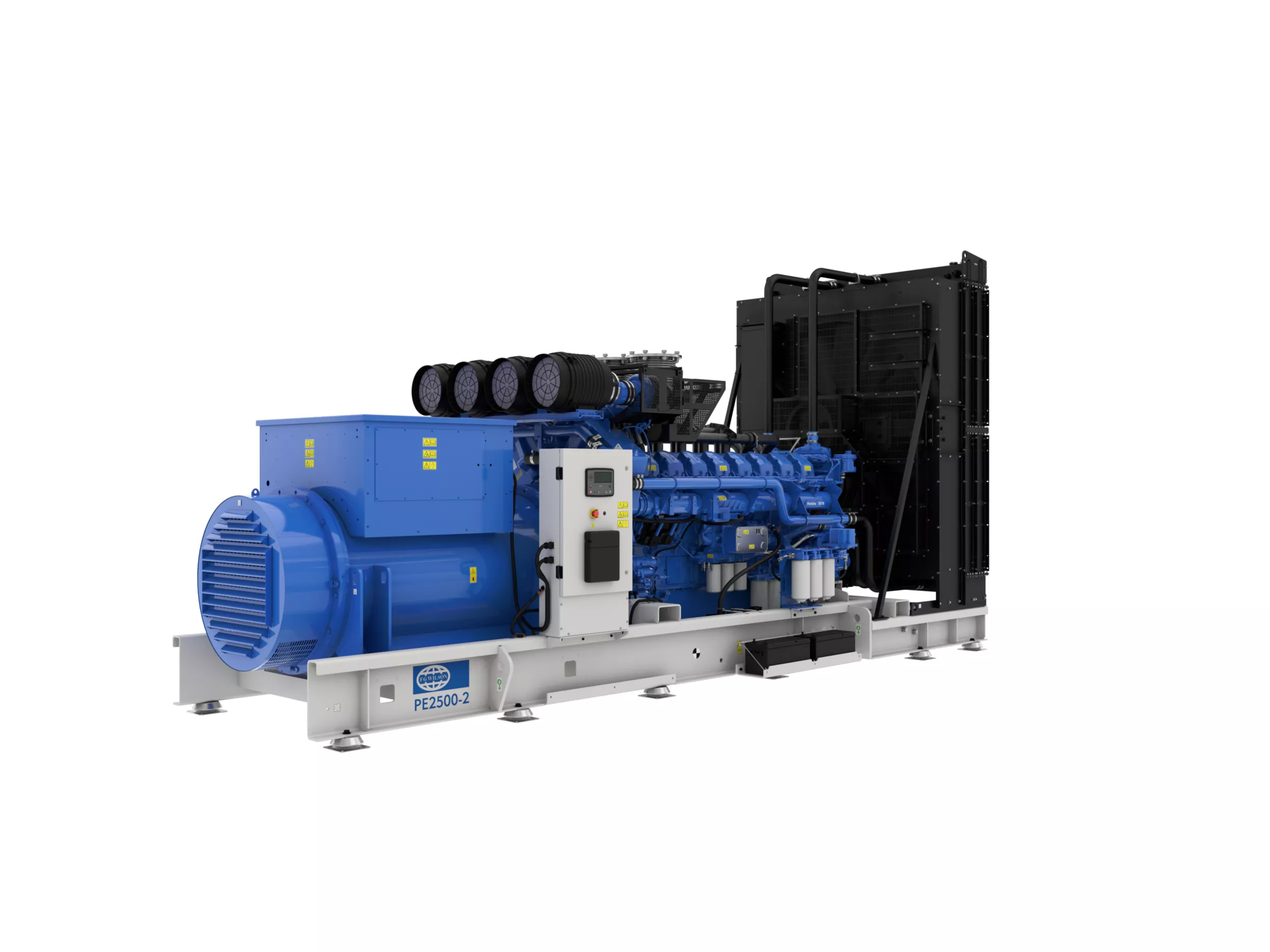

P2500-1/P2500-1E | 2250 kVA to 2500 kVA Diesel Generator | Perkins Engine

PE2500-2 (High Voltage) Large Range >800 kVA

Request A Price Find Dealer

Size A Generator

Build Your Own Generator

Key Specs

Maximum Rating
2500 kVA / 2000 kW
2500 kVA / 2000 kW
Emissions/Fuel Strategy
EPA Tier 2 Capable
EPA Tier 2 Capable
50 Hz Prime
2250 kVA / 1800 kW
2250 kVA / 1800 kW

Overview

730 - 2500 kVA Range

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50 Deg C package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Features At A Glance

Displaying 1-6 of 6

Our Large Product Range

Our Large Product Range

Our Large Product Range of generator set models is available from 800 - 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need.
Industry Leading Perkins Diesel Engine

Industry Leading Perkins Diesel Engine

The 5016 delivers a powerful 1400-2500 kVA range at 50 Hz for base load, prime and standby applications. As with all engines in the 5000 Series range, the 61-litre, V16 configuration engine has been designed specifically for power generation. The 5016 is engineered to offer reliable power across a wide range of electric power applications including critical power for data centres, hospitals and remote worksites, where uptime matters.
World Class Alternator

World Class Alternator

Supported by the Leroy Somer brand with their 100 years expertise in the alternator business, known worldwide for providing industry leading power generation and solutions, offering longlife products with low maintenance
DSE7420

Deep Sea 7420

DSE7420

The DSE7420 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. Deep Sea control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.
Testing & Validation

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support

World Wide Product Support

FG Wilson manufacturers product in the following locations: Brazil, China, India with headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Specifications Standard Equipment Optional Equipment

Product Specifications for PE2500-2 (High Voltage)

Download Print
Maximum Rating 2500 kVA / 2000 kW 2500 kVA / 2000 kW
Emissions/Fuel Strategy EPA Tier 2 Capable EPA Tier 2 Capable
50 Hz Prime 2250 kVA / 1800 kW 2250 kVA / 1800 kW
50 Hz Standby 2500 kVA / 2000 kW 2500 kVA / 2000 kW
Frequency 50 Hz 50 Hz
Speed 1500 RPM 1500 RPM
Voltage 10500 Volts 10500 Volts
Engine Model Perkins® 5016AC-E61TRG3 Perkins® 5016AC-E61TRG3
Bore 160 mm (6.3 in) 160 mm (6.3 in)
Stroke 190 mm (7.5 in) 190 mm (7.5 in)
Governor Type Electronic Electronic
Displacement 61.1l (3728.6 cu. in) 61.1l (3728.6 cu. in)
Compression Ratio 13.8:1 13.8:1

PE2500-2 (High Voltage) Standard Equipment

Print

Engine

  • Air Cleaner
  • Engine filled with lubrication oil
  • Low Coolant Temperature Shutdown
  • Perkins 5000 Series 16 cylinder engine
  • Electronic governor
  • Engine mounted fuel/water separator
  • Lube drain valve (910 kVA to 2500 kVA)

Alternator

  • Quadrature Droop Kit (AR6)
  • Permanent Magnet & D550 Regulator & 3 Phase Sensing
  • Leroy Somer
  • IP23 Protection
  • Anti-Condensation Heater and Panel Circuitry (AH1)
  • Alternator Winding Temperature Detection
  • Bearing Temperture Sensor

Cooling

  • Package mounted radiator
  • Coolant Drain Valve
  • Engine mounted battery charging alternator
  • Cooling System filled with Coolant mix
  • Charge air cooled (excluding TWGs)

Exhaust

  • Industrial silencer

Fuel

  • Fuel Cooler

Control Panel

  • Deep Sea 7420

Mounting

  • Skid Base
  • Lifting points on base frame

PE2500-2 (High Voltage) Optional Equipment

Print

Exhaust

  • Industrial, Residential, Critical Silencers
  • Catalytic converters
  • Heat Exhangers
  • Special spark arrestor silencers/certification

Control Panels

  • CompAp
  • Customer tailored PLC System
  • Remote monitoring
  • Increased Control Panel Ingress Protection

Starting/Charging

  • Lead Acid battery (Dry)
  • Dual and air starting systems

General

  • Upgrade to Standard Set for "CE" Certification
  • Customer witness test
  • Coolant heater

Fuel

  • Bi-fuel options (TWG and TRG only)
  • Fuel transfer systems (730 - 900 kVA)
