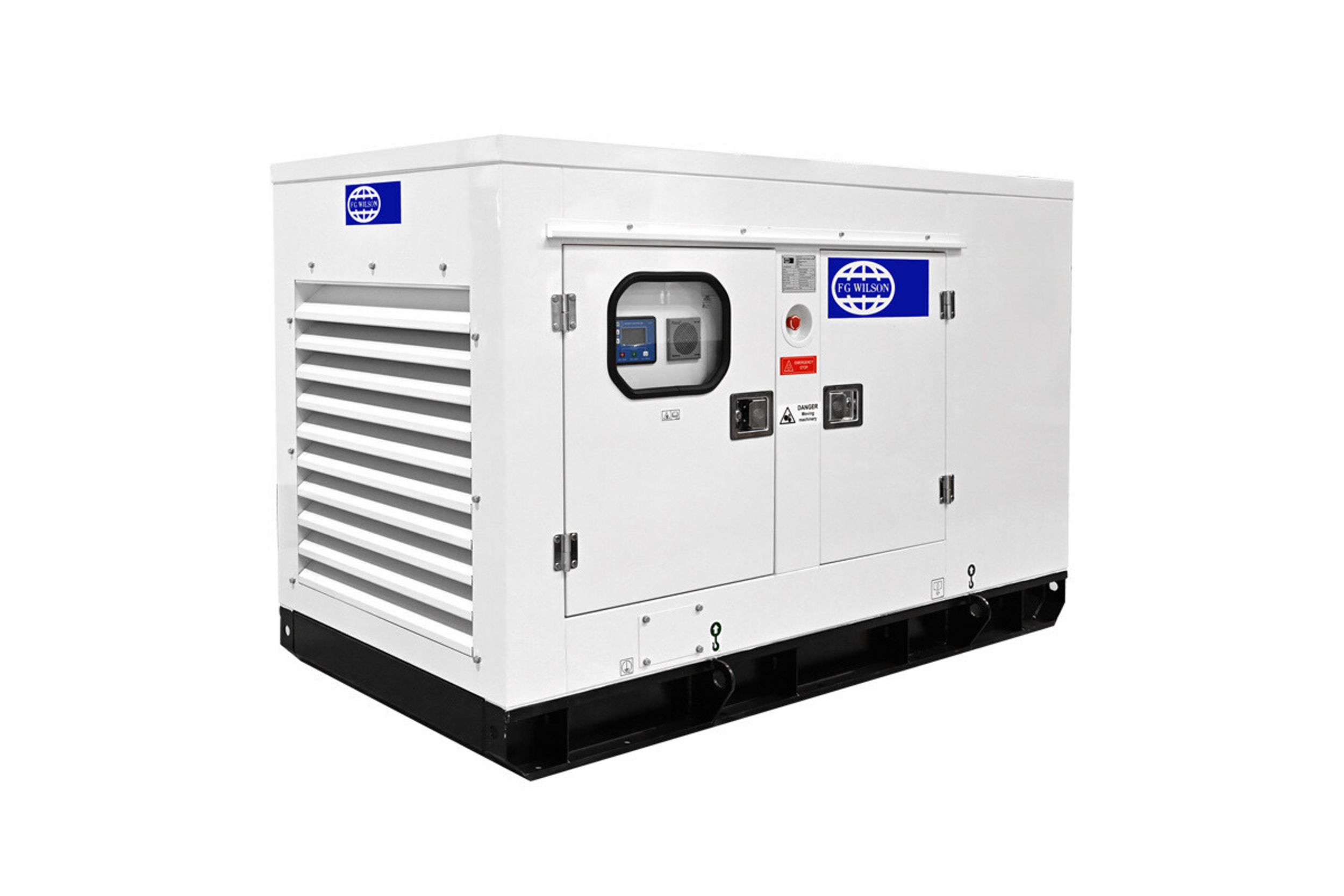

India Range FB40-4A

Request A Price Find Dealer

Key Specs

50 Hz Prime Rating: 40 kVA; 40 kVA

Frequency: 50 Hz; 50 Hz

Emissions/Fuel Strategy: CPCB IV+; CPCB IV+

FB40-4A
Change model

Overview

FB India Product Range

Our product range designed exclusively for the Indian market is available from 40 - 250 kVA. This CPCB IV+ compliant range provides outstanding value for money, guaranteeing maximum efficiency and productivity.

Features At A Glance

FG Wilson manufactures product in the following locations: Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Fully prototype tested with certified torsional vibration analysis available

Specifications Standard Equipment

Product Specifications for FB40-4A

Generator Set Specifications

50 Hz Prime Rating	40 kVA 40 kVA
Frequency	50 Hz 50 Hz
Emissions/Fuel Strategy	CPCB IV+ CPCB IV+
Minimum Rating	40 kVA 40 kVA
Maximum Rating	40 kVA 40 kVA
Speed	1500 RPM 1500 RPM
Voltage	415/240 Volts 415/240 Volts

Engine Specifications

Engine Model	H4G4DE40 H4G4DE40
Governor Type	Electronic A0 Electronic A0
Stroke	113 mm 113 mm
Bore	104 mm 104 mm
Displacement	3.84 3.84
Compression Ratio	16.5:1 16.5:1

FB40-4A Standard Equipment

Air Inlet

Air Cleaner

Cooling

Cooling system filled with coolant mix

Radiator and Cooling Fan

Exhaust

Exhaust stub pipe & gasket

Fuel

85L fuel tank

Alternator

Leroy Somer

415V, 50Hz (1500 rpm, 4 pole, Star formation, Brushless, IP 23, Class H/H insulation, AVR controlled, Voltage regulation +/-1%, and has good motor starting capability and ability to withstand good thyristor loading, with necessary short circuit and overload protection, B20 footmounting with IC01 cooling.

Mounting

Anti-vibration mounts

Base, formed steel with single wall fuel tank

Power

63A circuit breaker

General

Generating set is load tested and all protective devices and control functions are simulated and checked
