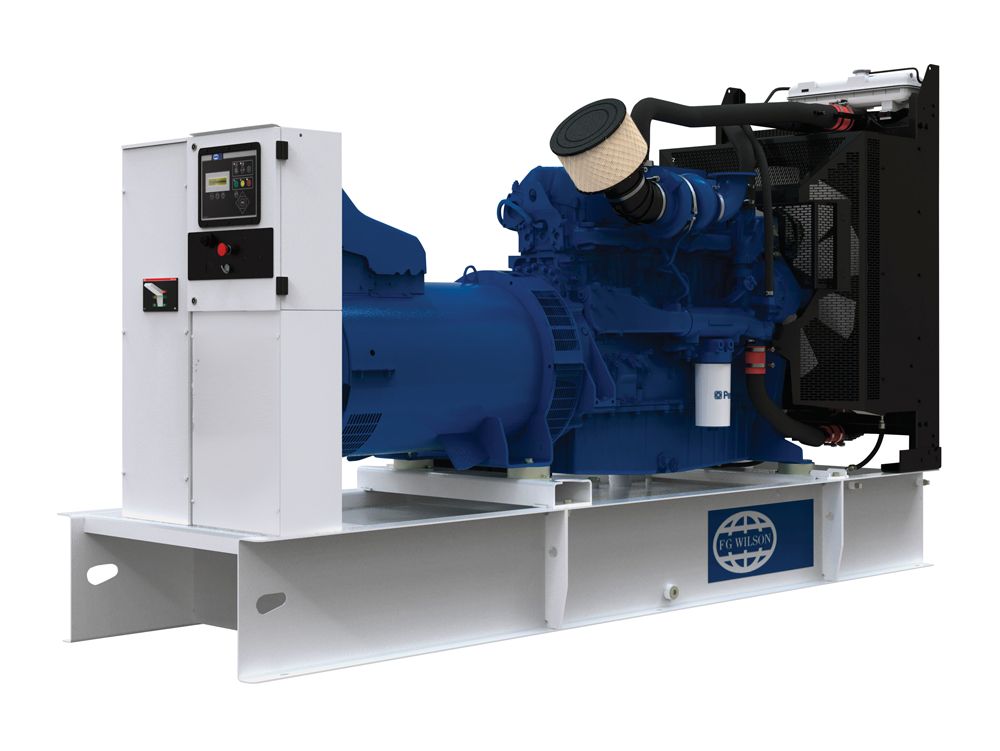

P550-2 | 500 kVA to 550 kVA Diesel Generator | Perkins Engine

Medium Range 225 – 938 kVA P550-2

Request A Price Find Dealer

Key Specs

Minimum Rating
500 kVA / 400 kW
500 kVA / 400 kW
Maximum Rating
550 kVA / 440 kW
550 kVA / 440 kW
Emissions/Fuel Strategy
EUIIIa Emissions Compliant
EUIIIa Emissions Compliant

Overview

350 - 938 kVA Range

The new 350 - 750 kVA industry leading power range is the result of a continued focus on performance, durability and serviceability combined with the most advanced production methods to deliver power you can trust.

Product Specifications for P550-2

Minimum Rating 500 kVA / 400 kW 500 kVA / 400 kW
Maximum Rating 550 kVA / 440 kW 550 kVA / 440 kW
Emissions/Fuel Strategy EUIIIa Emissions Compliant EUIIIa Emissions Compliant
50 Hz Prime 500 kVA / 400 kW 500 kVA / 400 kW
50 Hz Standby 550 kVA / 440 kW 550 kVA / 440 kW
Frequency 50 Hz 50 Hz
Speed 1500 RPM 1500 RPM
Voltage 220-415 Volts 220-415 Volts
Engine Model Perkins® 2506D-E15TAG2 Perkins® 2506D-E15TAG2
Bore 137 mm (5.4 in) 137 mm (5.4 in)
Stroke 171 mm (6.7 in) 171 mm (6.7 in)
Governor Type Electronic Electronic
Displacement 15.2l (927.6 cu. in) 15.2l (927.6 cu. in)
Compression Ratio 16.0:1 16.0:1

P550-2 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown
  • Engine mounted battery charging alternator

Cooling

  • Package mounted radiator
  • Radiator fan and charging alternator guards
  • Coolant Drain Valve
  • Cooling System filled with Coolant mix

Exhaust

  • Exhaust flange outlet
  • Exhaust bellows and gasket

Fuel

  • 8 Hr Fuel Tank
  • BSP Fuel Sockets

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Robust steel constructed base frame
  • Base frame drag and lift points
  • Captive linear vibration isolators between base and engine-generator
  • Battery Tray and Cables

P550-2 Optional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Quadrature Droop Kit (AR6)
  • Anti-Condensation Heater and Panel Circuitry (AH1)
  • AREP / PMG excitation
  • AVR Upgrades
  • Three phase sensing
  • Oversize Alternator
  • Coastal ingress protection alternator

Control Panels

  • PowerWizard 2.1
  • easYgen-2500

Starting/Charging

  • Heavy duty dry battery
  • Battery charger with auto boost

General

  • Upgrade to Standard Set for "CE" Certification
  • EEC Declaration of Conformity
  • Dual wall base tank (8 hrs)
  • Sound attenuated or High ambient enclosures
  • Battery isolator switch

Enclosure

  • Compliance to European Community Directive 2000/14/EC
  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • 50�C High ambient capability available
  • Robust and highly corrosion resistant construction

See how P550-2 compares against frequently compared products.
