Medium Range 225 – 938 kVA P300-5

Request A Price Find Dealer

Key Specs

Minimum Rating
275 kVA / 220 kW
275 kVA / 220 kW
Maximum Rating
300 kVA / 240 kW
300 kVA / 240 kW
Emissions/Fuel Strategy
Fuel Optimised
Fuel Optimised

Overview

225 - 375 kVA Range

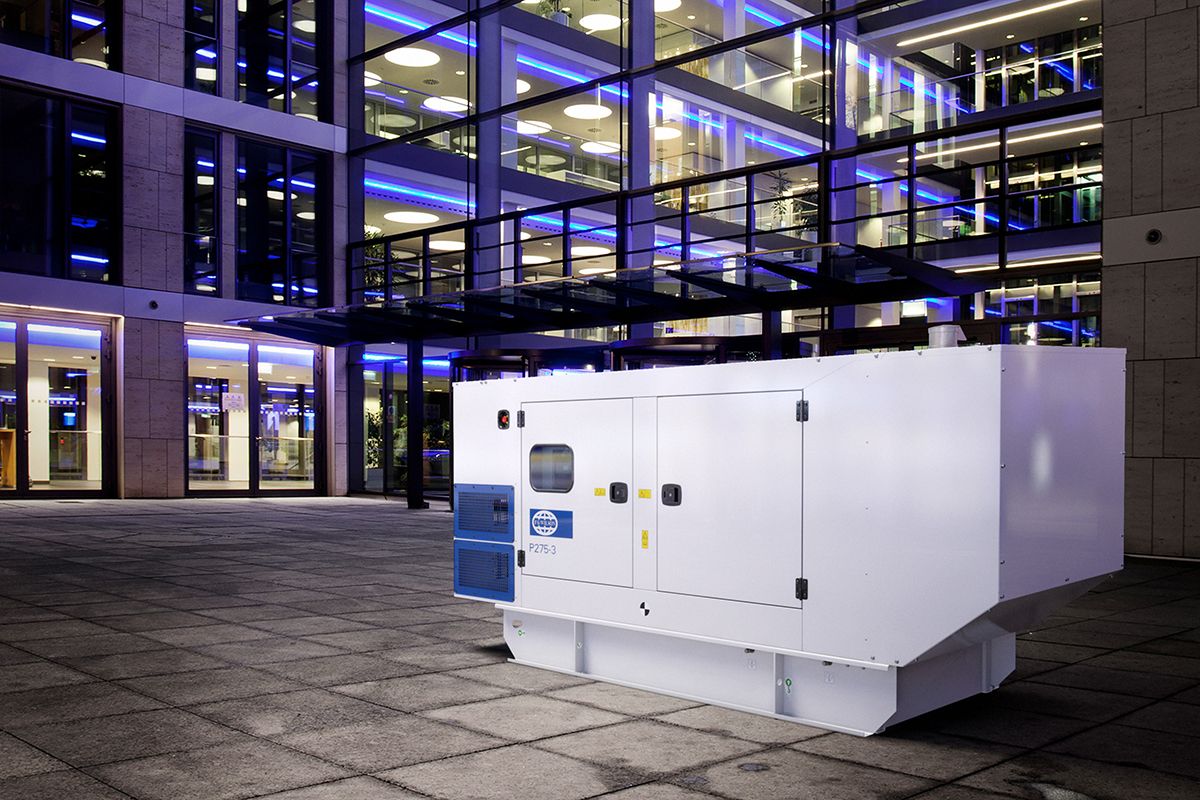

225 to 375 kVA Diesel Generator Sets. As your power needs increase, this cost effective generator set range delivers a powerful performance with world class power density. Compact and durable, they can easily be manoeuvred into position, whatever the installation conditions.

Product Specifications for P300-5

Minimum Rating 275 kVA / 220 kW 275 kVA / 220 kW
Maximum Rating 300 kVA / 240 kW 300 kVA / 240 kW
Emissions/Fuel Strategy Fuel Optimised Fuel Optimised
50 Hz Prime 275 kVA / 220 kW 275 kVA / 220 kW
50 Hz Standby 300 kVA / 240 kW 300 kVA / 240 kW
Frequency 50 Hz 50 Hz
Speed 1500 RPM 1500 RPM
Voltage 115-415 Volts 115-415 Volts
Engine Model Perkins® 1506A-E88TAG4 Perkins® 1506A-E88TAG4
Bore 112 mm (4.4 in) 112 mm (4.4 in)
Stroke 149 mm (5.9 in) 149 mm (5.9 in)
Governor Type Electronic Electronic
Displacement 8.8l (537 cu. in) 8.8l (537 cu. in)
Compression Ratio 16.1:1 16.1:1

P300-5 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Coolant Drain Valve
  • Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
  • Cooling System filled with Coolant mix
  • Radiator and Cooling Fan

Exhaust

  • Exhaust stub pipe and gasket

Fuel

  • 8 Hr Fuel Tank
  • Fuel Fittings for Local and Remote Feed

Alternator

  • FG Wilson
  • SHUNT Excitation
  • IP23 Protection
  • Coastal Insulation Protection

Control Panel

  • PowerWizard 1.1+

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
  • Battery Tray and Cables

P300-5 Optional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry (AH1)

Control Panels

  • PowerWizard 2.1 Control Panel (PWT2.1)
  • EasYgen 2500 control panel

Starting/Charging

  • Calcium battery (Dry)

General

  • Upgrade to Standard Set for "CE" Certification
  • Compact Skid Base for Open Sets
  • Sound attenuated, steel or galvanised enclosure
  • Dual wall fuel tanks

Enclosure

  • Compliance to European Community Directive 2000/14/EC
  • Super sound attenuation for residential areas
  • Totally enclosed exhaust silencing system
  • 50�C High ambient capability available
  • Robust and highly corrosion resistant construction
