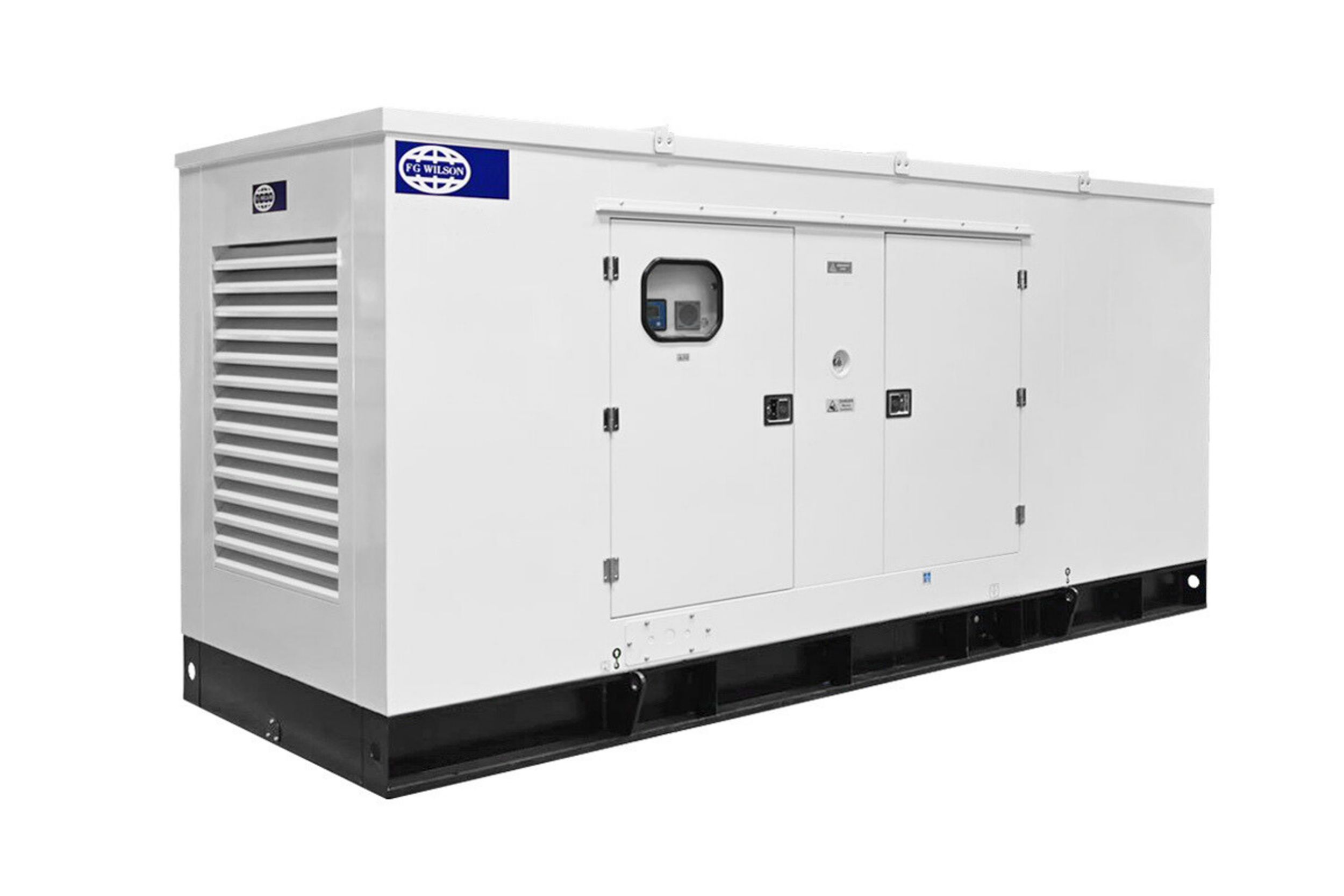

FB180-4A

India Range FB180-4A

Request A Price Find Dealer

Key Specs

50 Hz Prime Rating
180 kVA
180 kVA
Frequency
50 Hz
50 Hz
Emissions/Fuel Strategy
CPCB IV+ Certified
CPCB IV+ Certified

Overview

FB India Product Range

Our product range designed exclusively for the Indian market is available from 10 - 250 kVA. This CPCB IV+ compliant range provides outstanding value for money, guaranteeing maximum efficiency and productivity.

Product Specifications for FB180-4A

50 Hz Prime Rating 180 kVA 180 kVA
Frequency 50 Hz 50 Hz
Emissions/Fuel Strategy CPCB IV+ Certified CPCB IV+ Certified
Minimum Rating 180 kVA 180 kVA
Maximum Rating 180 kVA 180 kVA
Voltage 415/240 Volts 415/240 Volts
Speed 1500 RPM 1500 RPM
Engine Model H6G4DE180 H6G4DE180
Governor Type Electronic A0 Electronic A0
Stroke 118 mm 118 mm
Bore 104 mm 104 mm
Displacement 6 6
Compression Ratio 16.5:1 16.5:1

FB180-4A Standard Equipment

Air Inlet

  • Air Cleaner

Cooling

  • Cooling system filled with coolant mix
  • Radiator and Cooling Fan

Exhaust

  • Exhaust stub pipe & gasket

Fuel

  • 325L fuel tank

Alternator

  • Leroy Somer
  • 415V, 50Hz (1500 rpm, 4 pole, Star formation, Brushless, IP 23, Class H/H insulation, AVR controlled, Voltage regulation +/-1%, and has good motor starting capability and ability to withstand good thyristor loading, with necessary short circuit and overload protection, B20 footmounting with IC01 cooling.

Mounting

  • Anti-vibration mounts
  • Base, formed steel with single wall fuel tank

Power

  • 320A circuit breaker

General

  • Generating set is load tested and all protective devices and control functions are simulated and checked
