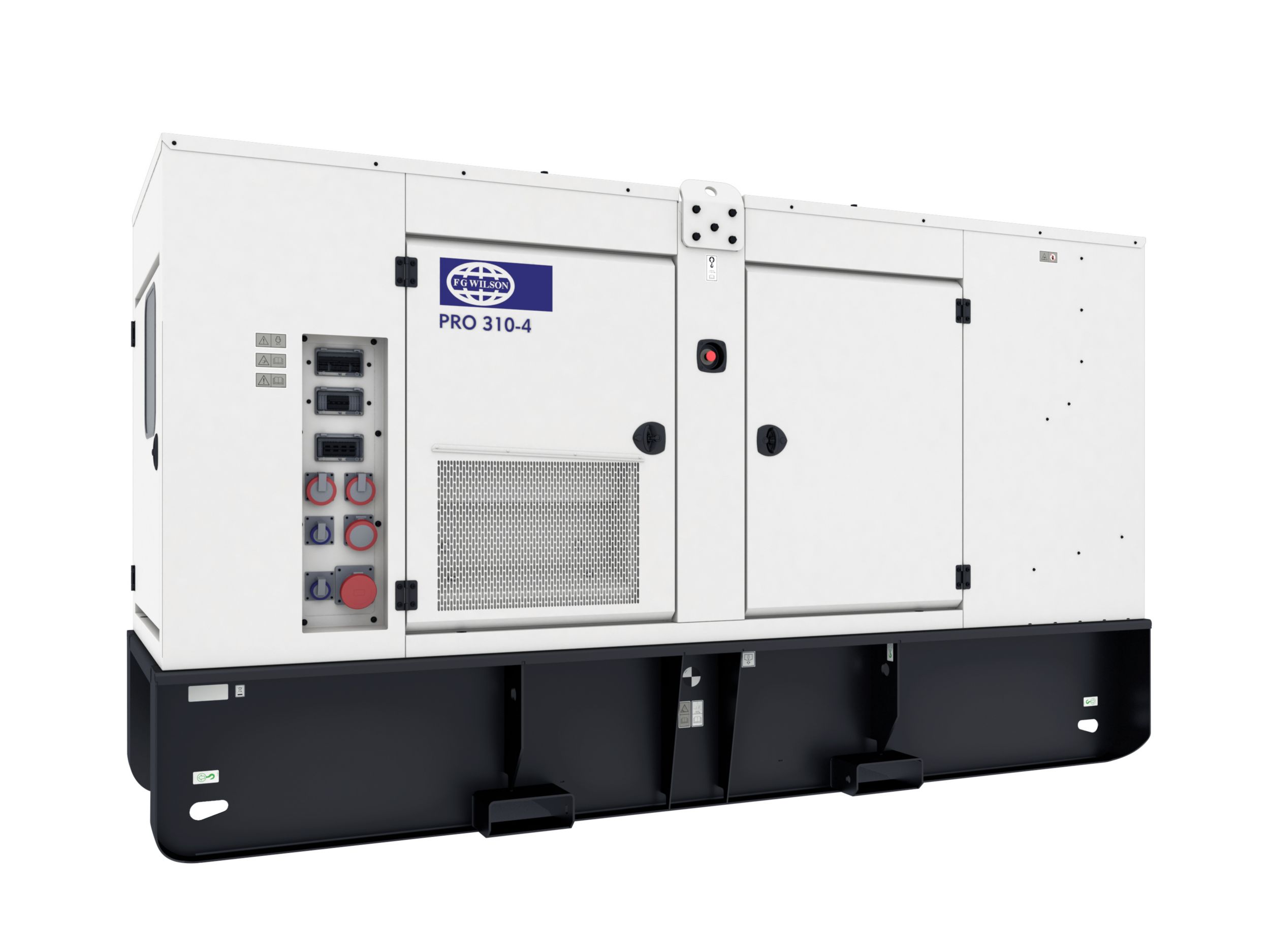

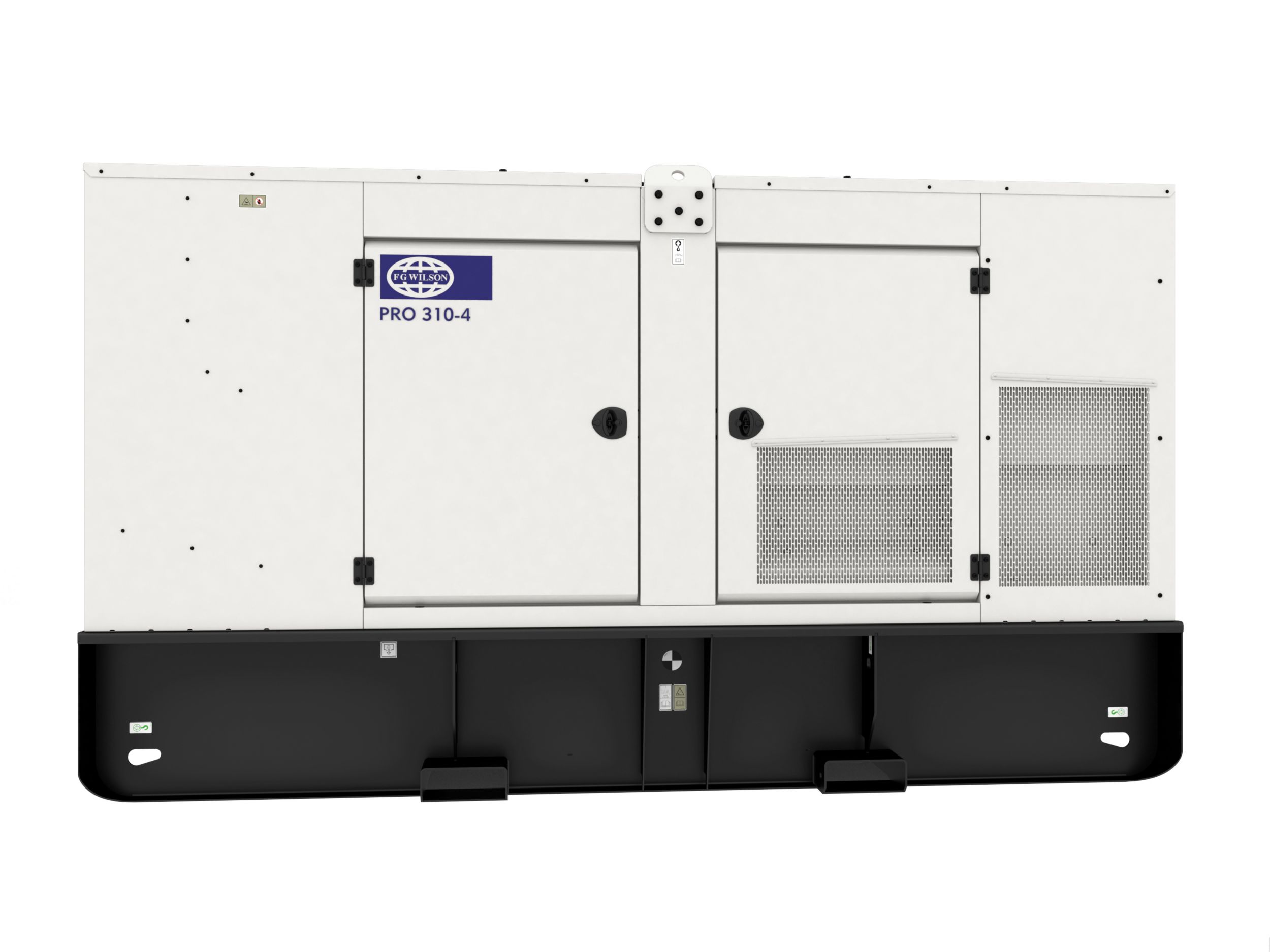

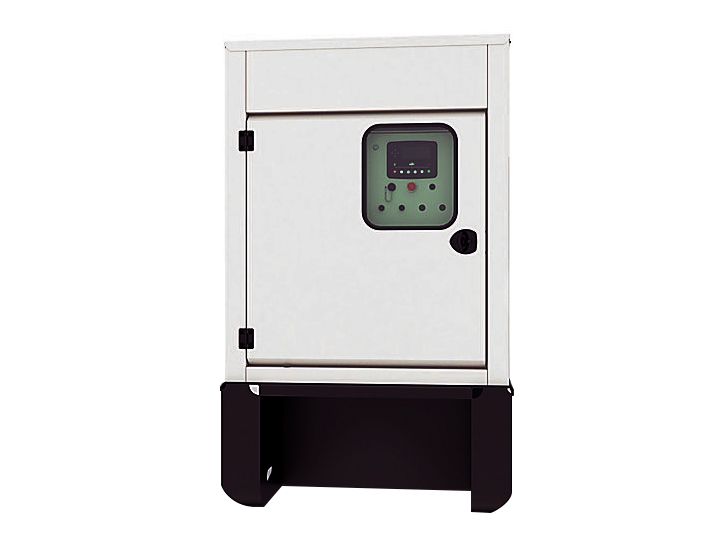

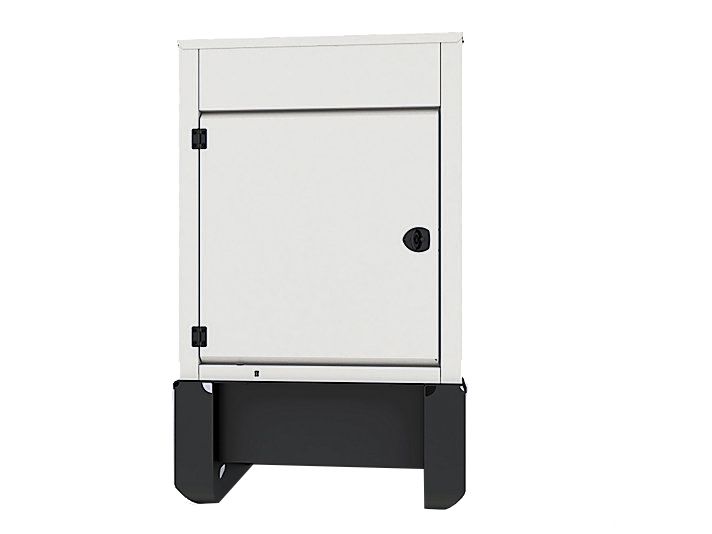

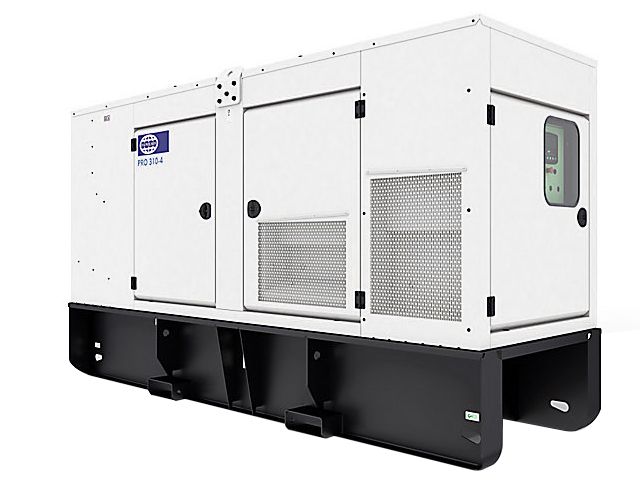

Rental Range PRO310-4

Request A Price Find Dealer

Key Specs

Minimum Rating
190 kVA / 152 kW
190 kVA / 152 kW
Maximum Rating
337.5 kVA / 270 kW
337.5 kVA / 270 kW
Emissions/Fuel Strategy
EU Stage V Emissions
EU Stage V Emissions

Overview

PRO Rental

The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Extremely robust, the galvanised sound attenuated enclosures provide excellent sound attenuation whilst being able to withstand the harshest on-site conditions.

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Compliance with EU Stage V Regulations

Our EU Stage V PRO models now ensure you are compliant with the new emissions standards required for generators in a mobile application

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Product Specifications for PRO310-4

Minimum Rating 190 kVA / 152 kW 190 kVA / 152 kW
Maximum Rating 337.5 kVA / 270 kW 337.5 kVA / 270 kW
Emissions/Fuel Strategy EU Stage V Emissions EU Stage V Emissions
50 Hz Prime 310 kVA / 248 kW 310 kVA / 248 kW
60 Hz Prime 337.5 kVA / 270 kW 337.5 kVA / 270 kW
Frequency 50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed 1500/1800 RPM 1500/1800 RPM
Voltage 220-480 Volts 220-480 Volts
Engine Model 1706J-E93TAG2 1706J-E93TAG2
Bore 115 mm 115 mm
Stroke 149 mm 149 mm
Governor Type Electronic ECM controlled (A6E2) Electronic ECM controlled (A6E2)
Displacement 9.3L 9.3L
Compression Ratio 17.0:1 17.0:1

PRO310-4 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with high ambient capability
  • Pusher fan with guards
  • Coolant drain line with internal brass ball control valve piped to base-frame
  • Low coolant level shutdown.
  • 50% coolant antifreeze with corrosion inhibitor

Exhaust

  • Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

  • 822 L double wall fuel tank, 25 hr runtime @ 75% prime rating
  • Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

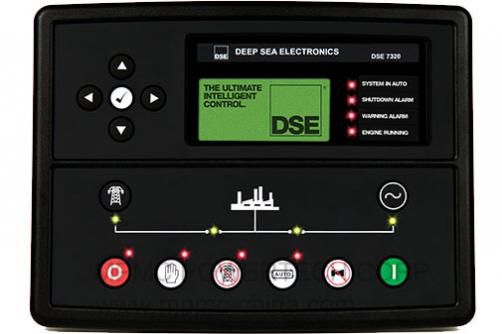

  • DSE7320

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral double wall fuel tank
  • Provides 110% spill containment of all engine fluids
  • Forklift pockets and heavy duty drag bar with skid plates

PRO310-4 Optional Equipment

Exhaust

  • Industrial, Residential, Critical Silencers

Alternator

  • Permanent Magnet Generator (PMG)
  • Anti-condensation heater 110 or 230 VAC

Starting/Charging

  • 12V battery charger
  • UL/CSA listed 120 V, 20 Amp battery charger, shock mounted and enclosed in dust proof housing

General

  • CE socket box with integrated MCB and RCBO protection
  • Clipsal socket box with integrated MCB and RCBO protection
  • Coolant heater 110 or 230 VAC
  • CE labelling (also available for BSFC)
  • Lube oil sump pump

See how PRO310-4 compares against frequently compared products.
